Credentials & BYOK

DVARA lets each tenant bring their own provider keys (BYOK) instead of forcing a single platform-wide credential. Keys are encrypted at rest with AES-256-GCM, resolved per-request through a layered fallback chain, and can be rotated or revoked without a restart.

This page covers:

  1. The credential resolution chain — how DVARA decides which key to use for a given request
  2. Managing credentials through the DVARA Flightdeck and Automation API
  3. Storage modes — Encrypted (default) vs zero-trust Reference
  4. Vault backends (HashiCorp, AWS Secrets Manager, Azure Key Vault)
  5. Rotation and revocation

The credential resolution chain​

Every outbound provider call walks a four-step chain, and the first step that returns a key wins:

1. Tenant credential        (stored in DVARA, scoped to this tenant)
   ├─ ACTIVE row                → primary
   │    ├─ ENCRYPTED mode       → AES-256-GCM decrypted in-process
   │    └─ REFERENCE mode       → vault lookup via the secret_reference pointer
   └─ unexpired GRACE row       → fallback when no ACTIVE exists (same branching)
          ↓ miss
2. Platform-default credential  (stored in DVARA, no tenant scope)
   ├─ ACTIVE row  → ENCRYPTED decrypt or REFERENCE vault lookup
   └─ unexpired GRACE row → fallback when no ACTIVE exists
          ↓ miss
3. Vault (direct)           (HashiCorp, AWS Secrets Manager, or Azure Key Vault)
          ↓ miss
4. Environment variable     (OPENAI_API_KEY, ANTHROPIC_API_KEY, etc.)

The tenant is resolved from the API key before this chain runs, so every lookup is keyed by both the provider name and the tenant. Cross-tenant credential leakage is impossible by construction — one tenant's cached key cannot be served to another tenant, even under heavy concurrency.

The GRACE fallback only activates when no ACTIVE row exists for the slot — typically because the current ACTIVE credential was manually revoked. During normal operation, an ACTIVE credential is always preferred.

Why BYOK matters:

  • Each tenant pays for their own usage directly to the provider
  • Compliance — a tenant's traffic stays within their provider account
  • Rotations are scoped to one tenant instead of the whole fleet

Require tenant-scoped credentials​

By default, the chain falls through. A tenant without their own credential silently borrows the platform-default in step 2. For shared multi-tenant deployments, that's usually wrong — provider billing, rate limits, and key blast radius all collapse onto one upstream key.

Set the environment variable DVARA_CREDENTIALS_REQUIRE_TENANT_CREDENTIAL=true (or YAML property dvara.credentials.require-tenant-credential: true) to short-circuit the chain at step 1. A tenant with no own active credential receives HTTP 403 tenant_credential_required instead of borrowing the platform-default. Each rejection emits a PROVIDER_CREDENTIAL_MISSING audit event with the tenant id and the configuration key that was missing — useful for spotting tenants that need to onboard their keys before traffic ramps.

For tiered SaaS where free-tier tenants are allowed to share the platform-default and paid-tier tenants must BYOK, set a per-tenant override in the tenant's metadata:

{
  "metadata": {
    "credentials.require-tenant-credential": false
  }
}

The override accepts a boolean, a number (0 / 1), or a YAML 1.1 truthy / falsy string (yes / no, on / off, 1 / 0, case-insensitive). Unrecognized values fall back to the global property and log a startup warning, so a typo doesn't quietly disable enforcement.

Two notes for operators:

  • Pair with API key enforcement. Strict-BYOK only fires when the request arrives with a tenant identity. Keyless anonymous traffic — which the data plane allows by default — carries no tenant attribute and bypasses the gate. Set DVARA_LLM_GATEWAY_REQUIRE_API_KEY=true together with strict-BYOK; the gateway logs a startup warning when the two are out of sync.
  • Rejection runs late. The gate fires inside the outbound provider call, after policy / budget / rate-limit filters have already evaluated. A misconfigured tenant still consumes their rate-limit window and budget for each rejected call, so size those defaults with onboarding headroom.

The four-step chain otherwise stays exactly as documented above — strict-BYOK only changes what happens when step 1 misses.

Managing credentials​

Open Identity → Credentials in the sidebar. DVARA_ENCRYPTION_MASTER_PASSWORD is required for ENCRYPTED credentials (see Setup & Login) but is not needed for REFERENCE credentials — the zero-trust path never encrypts anything in-process.

Credential list​

Lists every stored credential with name, provider, tenant (or platform default), status badge, last rotated, and actions. Key values are masked — only the first 8 characters of the encrypted prefix are shown. Filter by provider or tenant.

A credential is always in one of four statuses:

StatusWhat it meansUI treatment
ACTIVEThe current credential for this slot — resolved on every requestGreen badge, Rotate/Revoke/Delete actions enabled
GRACEA rotated-away credential that is still usable as a fallback for a configurable window. The resolver serves it only when the current ACTIVE credential is missing (typically because you just revoked a bad rotation).Amber badge with until HH:MM:SS UTC countdown, actions disabled
SUPERSEDEDReplaced by a newer credential through rotation. Kept as lineage history so you can trace a rotation chain. Never resolved at request time.Grey badge, Rotate/Revoke disabled (the successor is the one that rotates)
REVOKEDManually revoked by an admin. Skipped by the resolution chain — requests fall through to the next step (platform default → vault → env).Red badge, no Rotate/Revoke (already terminal)

DVARA guarantees at most one ACTIVE credential per (tenant, provider, secret key) slot at the database level, and at most one unexpired GRACE credential per slot as well. Two concurrent create attempts for the same ACTIVE slot cannot both succeed — the second gets a unique-constraint error. Rotating the same slot twice within a grace window collapses the earlier GRACE row to SUPERSEDED so only the most recent rotation's old key remains as a fallback.

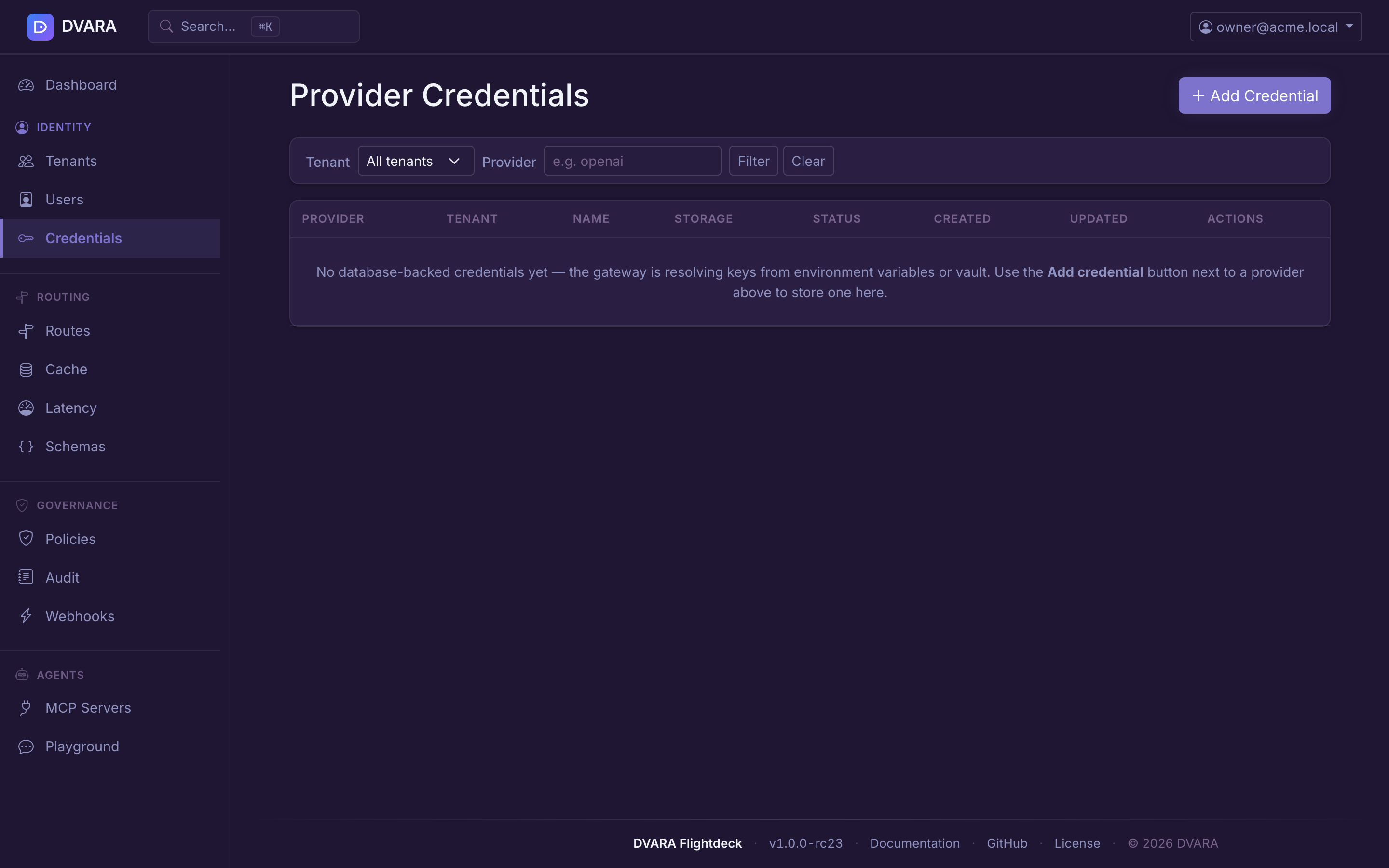

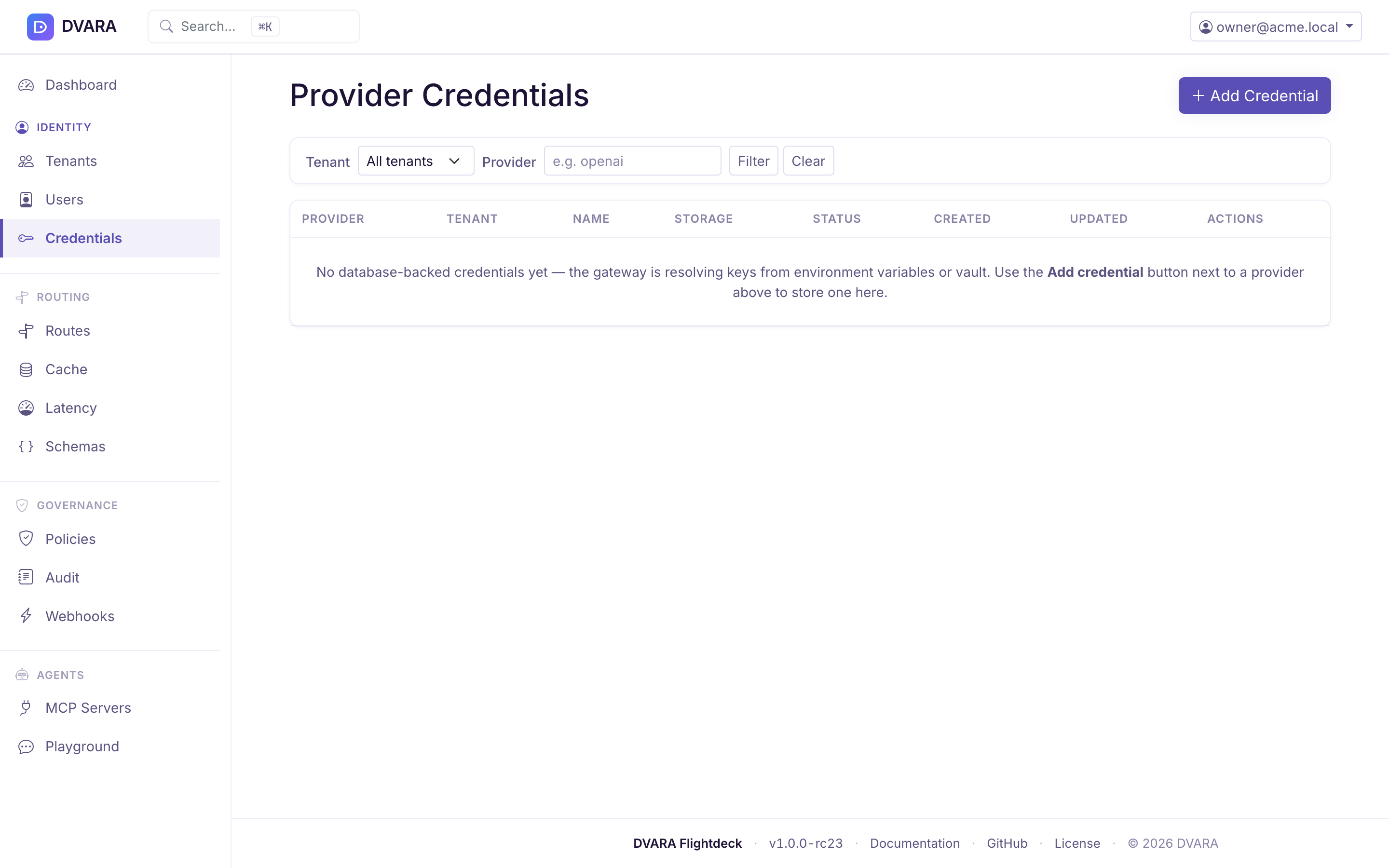

Credentials list with provider filterCredentials list with provider filter
Figure 1. Credentials list with provider filter

Storage modes​

Every credential is stored in one of two modes, chosen at creation time:

ModeWhere the secret livesWhen to pick it
ENCRYPTED (default)In the DVARA database as AES-256-GCM ciphertext. Decrypted in-process on every cache-miss request.Simplest to operate — one master password, no external dependencies. Fine for most teams.
REFERENCENot in DVARA. The database row holds only a pointer (vault path, AWS Secrets Manager ARN, Azure Key Vault secret name). DVARA resolves the live value through the configured vault backend per request.Zero-trust posture: DVARA never holds the secret at rest. Even an attacker with full database access plus the master password gets nothing — they'd still need your vault. Required by many regulated enterprises.

DVARA guarantees at the database level that every row carries either ciphertext or a pointer, never both and never neither. The check constraint rejects any inconsistent insert.

REFERENCE mode prerequisites:

  • At least one vault backend must be configured: dvara.vault.backend=hashicorp | aws-secrets-manager | azure-key-vault (see Vault backends below).
  • The vault must already contain the secret at the path / ARN / name you supply as the secretReference.
  • DVARA_ENCRYPTION_MASTER_PASSWORD is not needed for REFERENCE credentials. A REFERENCE-only deployment can omit it entirely.

Create a credential​

Click New Credential to open the create form. Fields fall into three groups:

Identity

  • Provider — dropdown of known providers (openai, anthropic, gemini, bedrock, azure-openai, mistral, cohere, groq, qwen, deepseek, moonshot, chatglm, grok). Pick this first; the form adapts below based on what you choose. Azure OpenAI requires both an api-key and a base-url (the resource URL ending in /openai); the BYOK form prompts for both. See Provider Setup for the full list and per-provider notes.
  • Name — a human-readable label (e.g. openai-prod, anthropic-staging).
  • Tenant — leave on Platform default (no tenant) to make this credential a fleet-wide fallback, or pick a tenant to scope the credential so only that tenant's traffic uses it.
  • Description (optional) — short free-text note so ops teams can find the right key at a glance when the list grows.
  • Tags (optional) — comma-separated labels like env:prod, region:eu-west, owner:finops for filtering the list later. Trimmed and deduplicated on save.
  • Expires at (optional) — date the upstream provider's key rotates, so DVARA can warn ahead of the cutoff.

Secret

  • Which AWS secret (AWS Bedrock only) — Bedrock needs two credentials, one for the Access Key ID and one for the Secret Access Key. The form shows this sub-select only when you pick AWS Bedrock. For every other provider, the underlying resolution key is auto-filled and there's nothing to configure here.
  • Storage mode — Encrypted (default when a master password is configured) or Vault reference.
    • Encrypted: DVARA stores the key at rest, encrypted. End-to-end management in DVARA.
    • Vault reference: DVARA stores only a pointer; the live secret stays in your vault and is fetched per request. Right choice when your security policy forbids storing secrets outside the vault.
  • API key (Encrypted mode only) — the actual secret. Encrypted before storage and never shown again.
  • Vault reference (Vault mode only) — vault pointer (e.g. secret/data/openai-prod for HashiCorp, arn:aws:secretsmanager:us-east-1:... for AWS, openai-prod-key for Azure Key Vault).

Actions

Cancel (left) and Create Credential (right) live in a footer row at the bottom of the form.

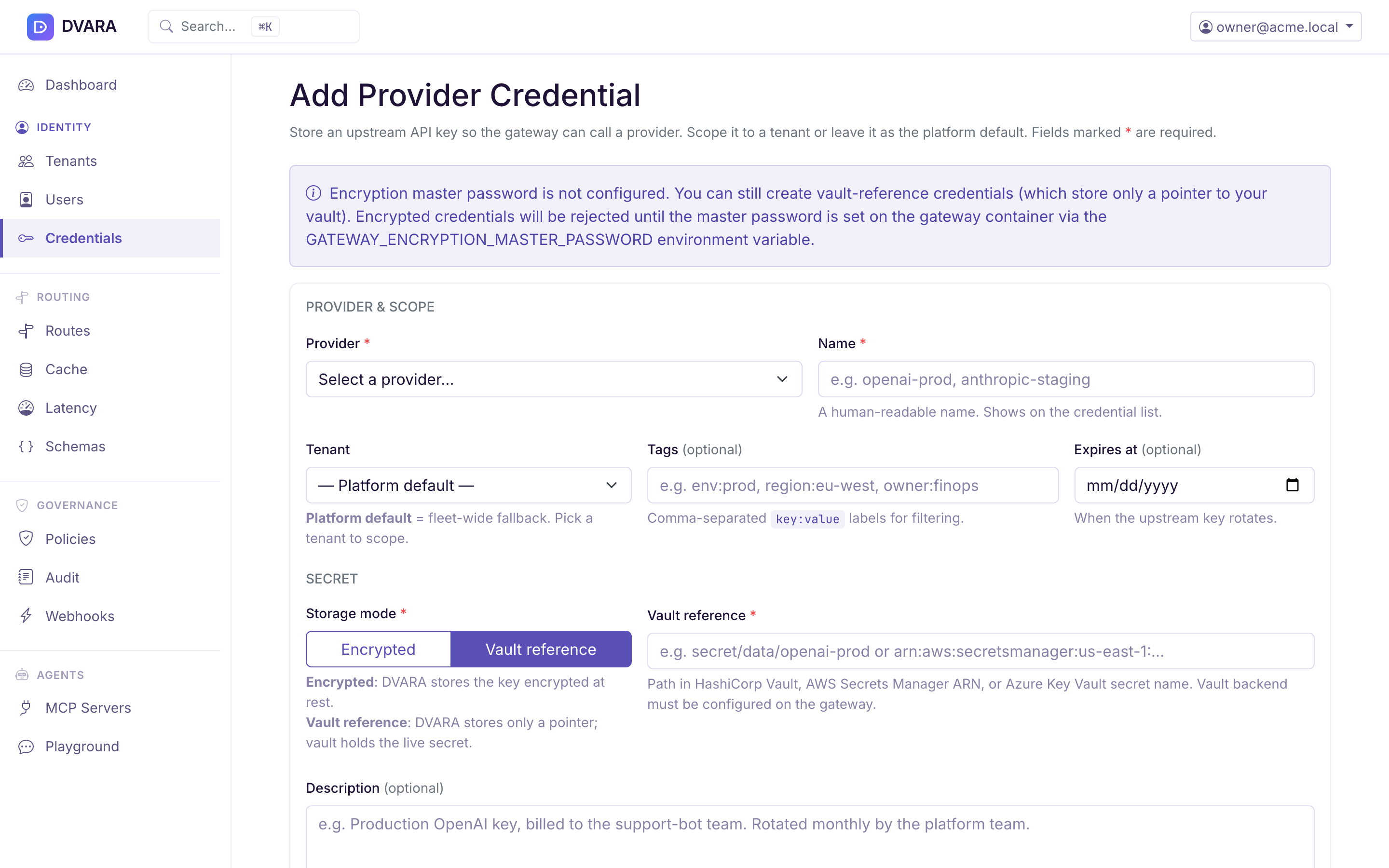

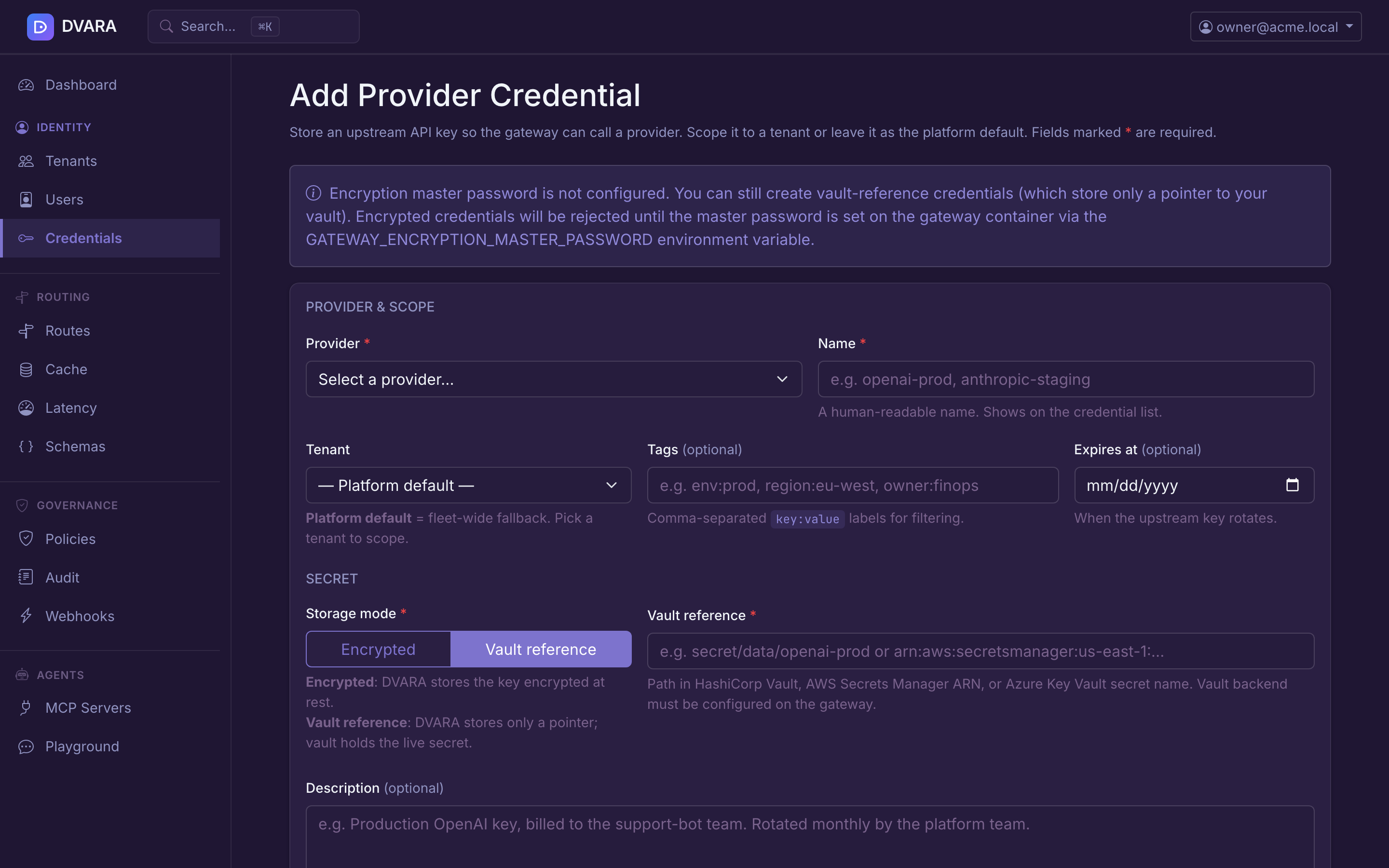

Create-credential formCreate-credential form
Figure 2. Create-credential form

Plaintext input is wiped from the DOM after submission. ENCRYPTED credentials show a masked prefix in subsequent detail views; REFERENCE credentials show the vault reference path (which is not itself a secret).

Example — create a REFERENCE credential via the REST API:

curl -X POST https://dvara.example.com/v1/admin/credentials \
  -H "Authorization: Bearer dvara_pat_..." \
  -H "Content-Type: application/json" \
  -d '{
    "name": "OpenAI Production (zero-trust)",
    "provider": "openai",
    "secretKey": "provider.openai.api-key",
    "storageMode": "REFERENCE",
    "secretReference": "secret/data/openai-prod",
    "tenantId": "tenant-a"
  }'

Response — notice the absence of any ciphertext field:

{
  "id": "cr_7f3b1e94-...",
  "name": "OpenAI Production (zero-trust)",
  "provider": "openai",
  "secretKey": "provider.openai.api-key",
  "storageMode": "REFERENCE",
  "secretReference": "secret/data/openai-prod",
  "maskedKey": null,
  "status": "ACTIVE",
  "tenantId": "tenant-a",
  "createdAt": "2026-04-17T15:00:00Z"
}

Mix-ups are rejected with precise error codes, all returned as 400 Bad Request with type: "invalid_request_error":

CodeWhen it fires
CREDENTIAL_API_KEY_MISSINGstorageMode=ENCRYPTED but apiKey omitted, or rotating an ENCRYPTED credential without an apiKey
CREDENTIAL_REFERENCE_MISSINGstorageMode=REFERENCE but secretReference omitted, or rotating a REFERENCE credential without a secretReference
CREDENTIAL_STORAGE_MODE_MISMATCHBoth apiKey and secretReference set, or the rotate endpoint receives the wrong field for the credential's current mode
INVALID_STORAGE_MODEstorageMode is not one of ENCRYPTED or REFERENCE
CREDENTIAL_NOT_ROTATABLERotating a credential that is not ACTIVE (already GRACE, SUPERSEDED, or REVOKED)
CREDENTIAL_NOT_FOUNDReturned as 404 when the credential id doesn't exist
ENCRYPTION_NOT_CONFIGUREDCreating an ENCRYPTED credential on a deployment that has no master password configured — the response suggests switching to REFERENCE mode instead

Rotate a credential​

Click Rotate on any active credential to open a modal. The modal shows one of two inputs depending on the credential's storage mode:

  • ENCRYPTED row — paste a new API key. Encrypted with AES-256-GCM and stored in place of the old ciphertext.
  • REFERENCE row — paste a new vault pointer. The old row is superseded; the new row points at the new vault location. The live value is resolved from the vault on the next request — DVARA never sees it.

Both kinds of rotation also accept an optional grace period in minutes.

On submit, DVARA performs an atomic rotation:

  1. For ENCRYPTED: the new API key is encrypted with AES-256-GCM. For REFERENCE: no encryption — only the pointer changes.
  2. In a single database transaction the current credential is transitioned (see "Immediate vs grace rotation" below) and a brand-new ACTIVE credential is inserted. The new row carries a previous_credential_id reference back to the old one, forming a lineage chain. Storage mode is inherited from the old row and cannot change mid-rotation.
  3. The cached entry for this tenant and provider is evicted. For REFERENCE credentials, the cached vault value keyed by the old reference path is also evicted — so a vault-backed deployment doesn't keep serving the stale cached secret until the vault cache TTL expires.
  4. Subsequent requests pick up the new credential on their next resolution.
  5. A PROVIDER_CREDENTIAL_ROTATED audit event is written whose credential_id payload is the new (now-active) credential's ID. The payload also carries storage_mode (ENCRYPTED or REFERENCE) so compliance queries can filter "how many rotations were zero-trust". When a grace period was supplied, the payload also carries grace_period_minutes and the previous_credential_id of the row now in GRACE.

Rotation is atomic by construction: the database's partial unique index on (tenant, provider, secret key) WHERE status = 'ACTIVE' guarantees there is never a moment when two active credentials co-exist for the same slot — not even sub-millisecond under concurrent rotation attempts.

Only ACTIVE credentials can be rotated. Calling rotate on a credential that is already GRACE, SUPERSEDED, or REVOKED returns an error (CREDENTIAL_NOT_ROTATABLE) — the successor ACTIVE row is the one that rotates. The DVARA Flightdeck hides the Rotate button for non-active rows, and the REST API rejects the call before any state change.

Immediate vs grace rotation​

gracePeriodMinutes on the rotate request selects between two transition shapes:

ValueOld row's post-rotation statusBehaviour
0 (default)SUPERSEDED with superseded_at setThe old key becomes dead immediately; the new key is the only one that resolves. Use when you have already rotated the key at the upstream provider.
1–1440GRACE with grace_until = NOW() + N minutesThe new key is the primary resolution target. If you discover the new key is wrong (typo, wrong environment, already revoked upstream) and revoke it within the grace window, the resolver automatically falls back to the old GRACE row, keeping traffic flowing while you roll back. Once grace_until passes, a scheduled sweep flips the row to SUPERSEDED and emits a CREDENTIAL_GRACE_EXPIRED audit event.

Typical rollout: staged operators use a 10–15 minute grace window for production rotations. That leaves enough time to watch error rates on the DVARA Flightdeck dashboard and revoke the new key if something looks off — without scheduling a formal maintenance window.

The grace fallback is one-way: if the active row is revoked during grace, the grace row takes over; but once the grace window closes, the old key is gone. Grace does not extend indefinitely and does not survive a second rotation — rotating again within the window takes the current active row through the transition fresh.

The old credential is not deleted — it stays in the database as lineage history. To trace a rotation chain, follow previous_credential_id from the current ACTIVE row back through the GRACE or SUPERSEDED rows until you hit null. To discard history entirely, delete the superseded rows (they are never resolved at request time; deleting them is safe).

Example — rotate with a 15-minute grace window:

curl -X POST https://dvara.example.com/v1/admin/credentials/cr_1b2a3c4d/rotate \
  -H "Authorization: Bearer dvara_pat_..." \
  -H "Content-Type: application/json" \
  -d '{"apiKey": "sk-new-prod-key", "gracePeriodMinutes": 15}'

Response:

{
  "id": "cr_7f3b1e94-2a5d-4c88-9e21-d8f0ab4c3e62",
  "tenantId": "tenant-a",
  "name": "OpenAI Production",
  "provider": "openai",
  "secretKey": "provider.openai.api-key",
  "maskedKey": "***encrypted***",
  "status": "ACTIVE",
  "previousCredentialId": "cr_1b2a3c4d-5e6f-7890-abcd-1234567890ab",
  "createdAt": "2026-04-17T14:32:11Z",
  "updatedAt": "2026-04-17T14:32:11Z"
}

A follow-up GET /v1/admin/credentials/cr_1b2a3c4d returns the old row, which is now:

{
  "id": "cr_1b2a3c4d-5e6f-7890-abcd-1234567890ab",
  "status": "GRACE",
  "graceUntil": "2026-04-17T14:47:11Z",
  "previousCredentialId": null
}

If a rollback is needed — say the new key turns out to be invalid — revoke cr_7f3b1e94 (POST /v1/admin/credentials/cr_7f3b1e94/revoke). The resolver will fall back to the grace row and requests continue to succeed until 14:47:11Z. If no rollback is needed, the grace row transitions to SUPERSEDED at 14:47:11Z automatically and a CREDENTIAL_GRACE_EXPIRED audit event fires.

The previousCredentialId points at the just-superseded row. A subsequent GET /v1/admin/credentials/{previousCredentialId} returns the prior row with status: "SUPERSEDED" and supersededAt set — useful for compliance audits that need to attest "the key active on date X was key Y".

Revoke a credential​

Click Revoke to flip the credential's status to REVOKED. Subsequent resolution calls skip it and fall through to the next step in the chain (platform default → vault → env). Revocation is permanent — there is no reactivation path. A revoked credential stays in the database so you have an audit trail. If you need to restore service, create a new credential.

Delete a credential​

Click Delete to permanently remove a credential row. Irreversible. Requires confirmation.

Vault backends​

If you'd rather store secrets in a dedicated vault instead of the DVARA database, DVARA ships integrations for three backends. Enable one by setting dvara.vault.backend. The backend is queried on demand and results are cached for dvara.vault.cache-ttl-seconds (default: 300).

HashiCorp Vault​

DVARA_VAULT_BACKEND=hashicorp
VAULT_ADDR=https://vault.example.com:8200
VAULT_NAMESPACE=my-namespace                          # optional
VAULT_SECRET_PATH=secret/data/meridian                 # default
VAULT_AUTH_METHOD=approle                             # or 'token'

# Token auth:
VAULT_TOKEN=hvs.CAESIJ...

# AppRole auth:
VAULT_ROLE_ID=...
VAULT_SECRET_ID=...

AWS Secrets Manager​

DVARA_VAULT_BACKEND=aws-secrets-manager
AWS_VAULT_REGION=us-east-1
AWS_SECRET_NAME=meridian/provider-credentials          # default

# Optional — falls back to the default AWS credential chain if blank:
AWS_VAULT_ACCESS_KEY=...
AWS_VAULT_SECRET_KEY=...

The secret payload must be a JSON object where each key matches the env-var name DVARA expects:

{
  "OPENAI_API_KEY": "sk-...",
  "ANTHROPIC_API_KEY": "sk-ant-..."
}

Azure Key Vault​

DVARA_VAULT_BACKEND=azure-key-vault
AZURE_VAULT_URL=https://my-vault.vault.azure.net/
AZURE_CLIENT_ID=...
AZURE_CLIENT_SECRET=...
AZURE_TENANT_ID=...

Each provider key is stored as a separate secret in the vault, named after the env-var DVARA expects (OPENAI-API-KEY, etc. — Azure Key Vault replaces _ with -).

Precedence​

Vault is step 3 in the resolution chain, which means a database-stored tenant credential always wins over a vault value. Use the vault for platform-default keys (steps 1–2 miss because the tenant has no credential record) or for dev / CI environments where you don't want to manage credentials through the DVARA Flightdeck.

Master encryption password​

Database-backed credentials are encrypted with AES-256-GCM using a key derived from DVARA_ENCRYPTION_MASTER_PASSWORD via PBKDF2. Set this in your environment before starting the gateway:

DVARA_ENCRYPTION_MASTER_PASSWORD=<random-32-char-or-longer-string>

If this password is ever rotated, every existing credential must be re-encrypted — there's no automatic re-key. The recommended flow is:

  1. Export credentials via GET /v1/admin/credentials (to capture metadata — values remain encrypted)
  2. Rotate DVARA_ENCRYPTION_MASTER_PASSWORD in your secret store
  3. Redeploy with the new password
  4. Re-create each credential with its original value

For that reason, treat the master password as a long-lived secret and store it in the same vault you use for other bootstrap secrets.

API summary​

EndpointPurpose
POST /v1/admin/credentialsCreate credential (201). storageMode=ENCRYPTED (default) needs apiKey; storageMode=REFERENCE needs secretReference.
GET /v1/admin/credentialsList credentials (keys masked; filter by ?provider=, ?tenant_id=, and/or ?storage_mode=ENCRYPTED|REFERENCE).
GET /v1/admin/credentials/{id}Get a credential (key masked)
POST /v1/admin/credentials/{id}/rotateRotate credential (evicts cache). For ENCRYPTED pass apiKey; for REFERENCE pass secretReference. Accepts optional gracePeriodMinutes (0–1440).
POST /v1/admin/credentials/{id}/revokeRevoke (flip status to REVOKED)
DELETE /v1/admin/credentials/{id}Permanently delete

Full config reference for vault backends: Configuration → Enterprise vault config.
